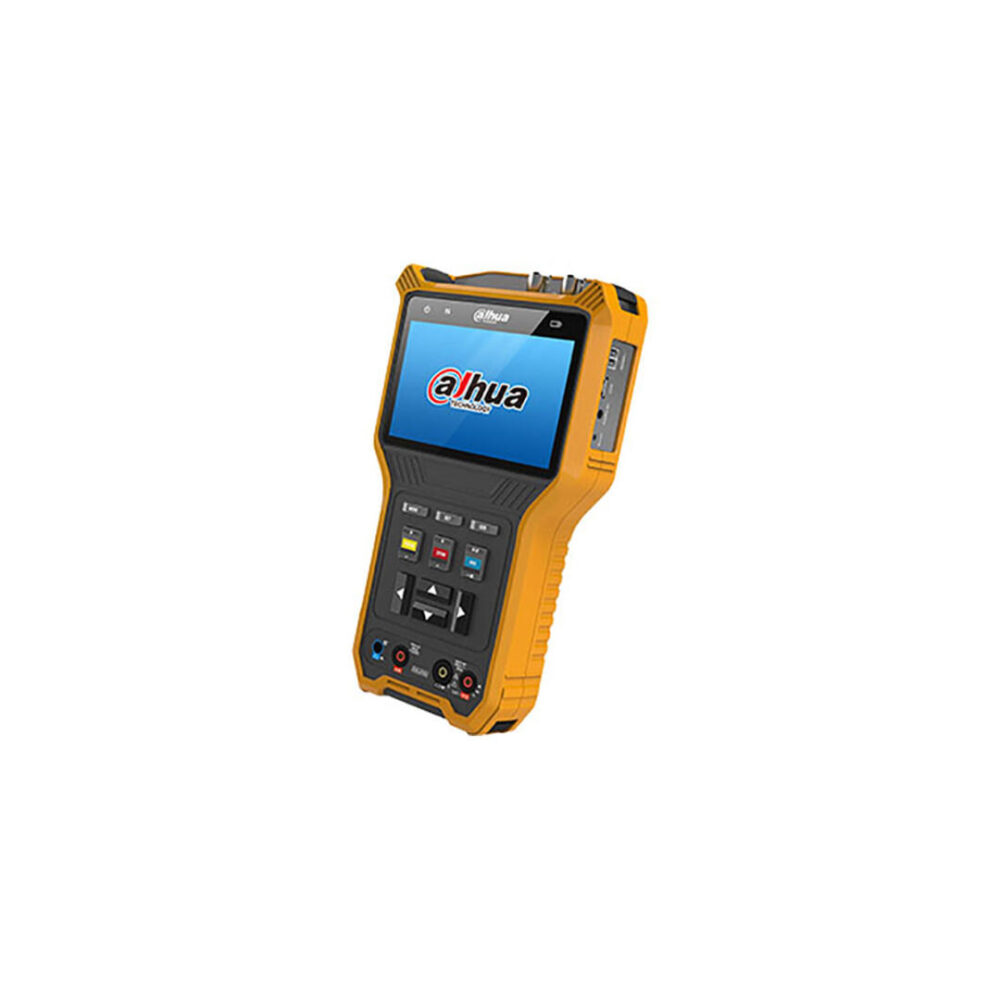

تستر دوربین مداربسته داهوا DH-PFM905-E

– صفحه 4 اینچی IPS، رزولوشن 800*480 و 16.7M رنگ
– پشتیبانی از دوربین مداربسته HDCVI/AHD/TVI/CVBS
– پشتیبانی از صدا و RS485
– پشتیبانی از تست فلوک کابل شبکه و تعین متراژ کابل شبکه
– پشتیبانی +PoE, و خروجی برق DC12V/1A برای تامین برق دوربین مداربسته جهت تست
– باطری قابل تعویض 7.4V/10.4Wh polymer lithium ion، مدت زمان استفاده از دستگاه تا 8 ساعت
– دارای 2 چراغ LED

Model DH-PFM905-E
Physical Port
BNC port 1* analog video input(HDCVI/TVI/AHD/CVBS), 1* analog video output
Function port 1* RS485 output, 1*DC12V input, 1* DC12V output(power supply), 1* Micro USB connector, 1* 3.5mm audio in, 1* reset button
Analog Video Test
Format HDCVI/ AHD/ TVI/ CVBS
HDCVI camera test 1-ch BNC in, highest-resolution:
Support 1280x720P 25/30/50/60fps; 1920x1080P 25/30fps; 2560x1440P 25/ 30fps
TVI camera test 1-ch BNC in, highest-resolution:
Support 1280x720P 25/30/50/60fps; 1920x1080P 25fps/30fps; 2048×1536 18/25/30fps; 2560X1440 15/25/30fps; 2592X1944 12/20fps
AHD camera test 1-ch BNC in, highest-resolution:
Support 1280x720P 25fps/30fps; 1920x1080P 25fps/30fps; 2560x1440P 15fps/ 18fps/25fps/30fps;
CVBS camera test 1-ch BNC in, 1-ch BNC out, support PAL/NTSC format(auto adapt)
Camera test Real time video, HD coaxial PTZ control, RS485 control, audio test, Support 8 level portion view, snapshot, record video, photo view and video play back
PTZ Control
Protocol Compatible with more than 30 protocols such as Pelco-D/P, Samsung, Panasonic, Lilin, Yaan, etc.
Baud rate 150, 300, 600, 1200, 2400, 4800, 9600, 19200bps
Tools
DMM (digital multi-meter) AC/DC Voltage testing, AC/DC current testing, resistance testing, capacitance testing, diode forward voltage drop testing, open and short testing
Data monitor Captures and analyzes the command data from controlling device via RS485
LED Flashlight 2*35lm LED light, astigmatism
Audio test 3.5mm audio port is used to test microphones or other audio devices
USB storage Micro USB port can be used for USB storage devices
System upgrade Tester can be upgrade online through PC
System Information
Screen 4.0 inch TFT 800xRGBx480(WVGA) resolution, 16.7Mcolor,
backlight brightness adjustable
Storage capacity Build-in 8G flash
Operation setup Supporting a variety of languages, such as English, Chinese, Spanish, French, Russian etc.
Auto power off Disable/ 5~60 minutes
Keyboard Tone Enable/ Disable
Power
Charger 12V/1A Power charge
Battery 7.4V polymer lithium ion battery, capacity 10.4Wh
Rechargeable After charging 2 hours, normal working time 5 hours
DC12V power out Max. DC12V 1A output
Other
Working temperature -10℃~+55℃(+14℉~+131℉)
Working humidity 30%~90%
Casing Plastics
Dimensions 175mmx113mmx37mm(6.89”x4.45”x1.46”)
Net weight 0.4kg(0.88 lb)
Packaging dimensions 275mmx170mmx116mm(10.83”x6.69”x4.57“)
Gross weight 1.2kg(2.65 lb)
Certifications
Certifications CE/FCC
