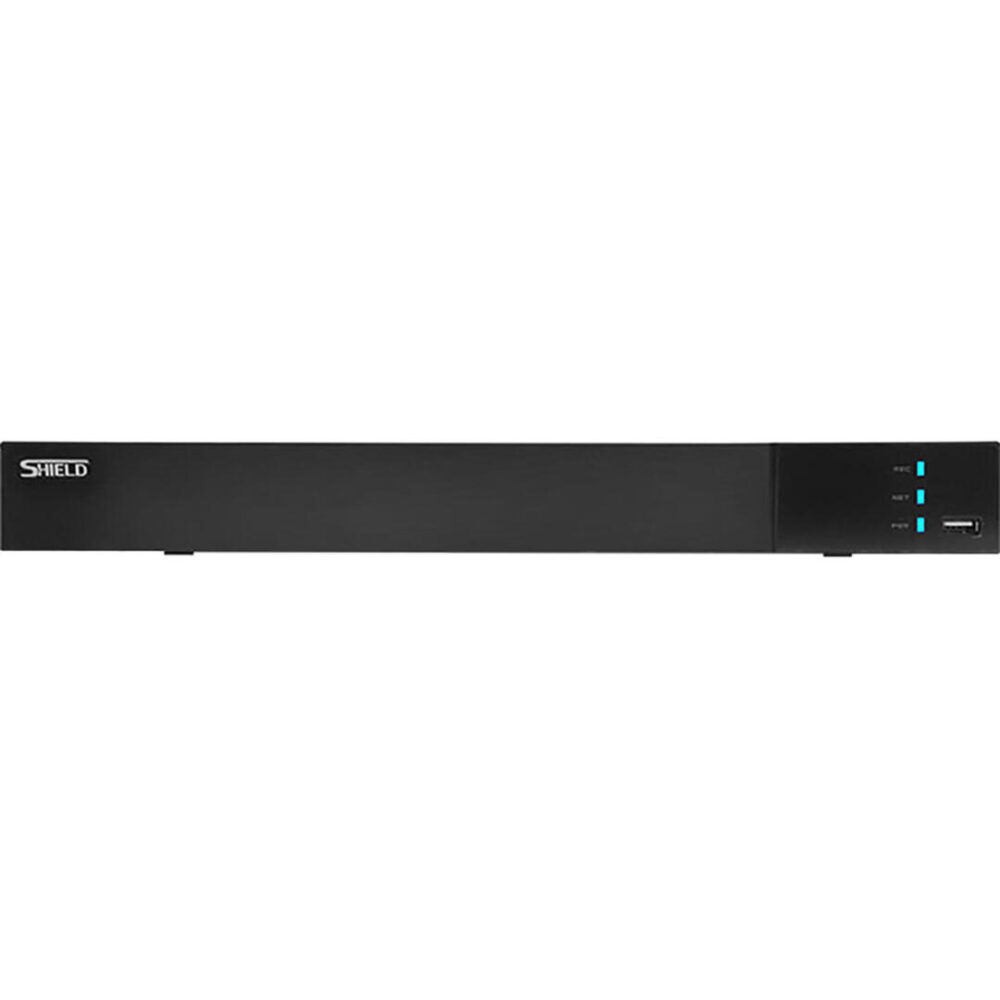

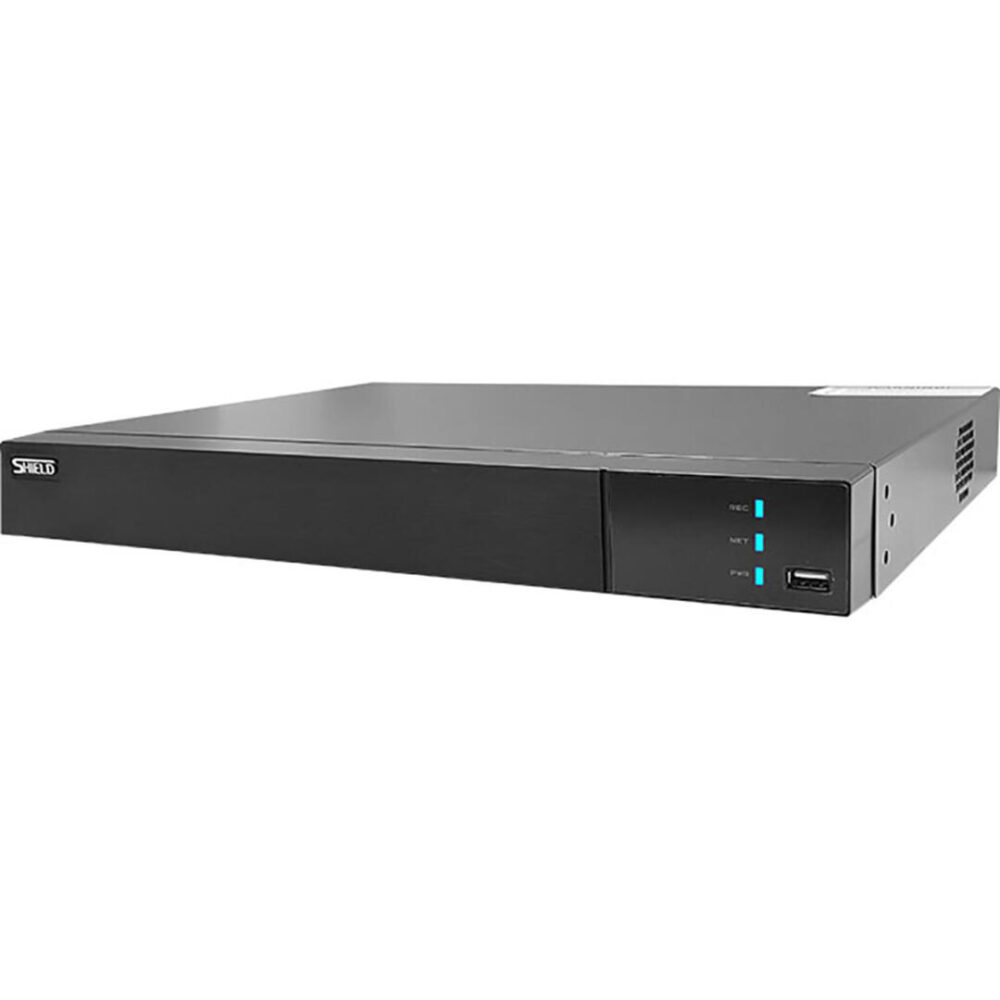

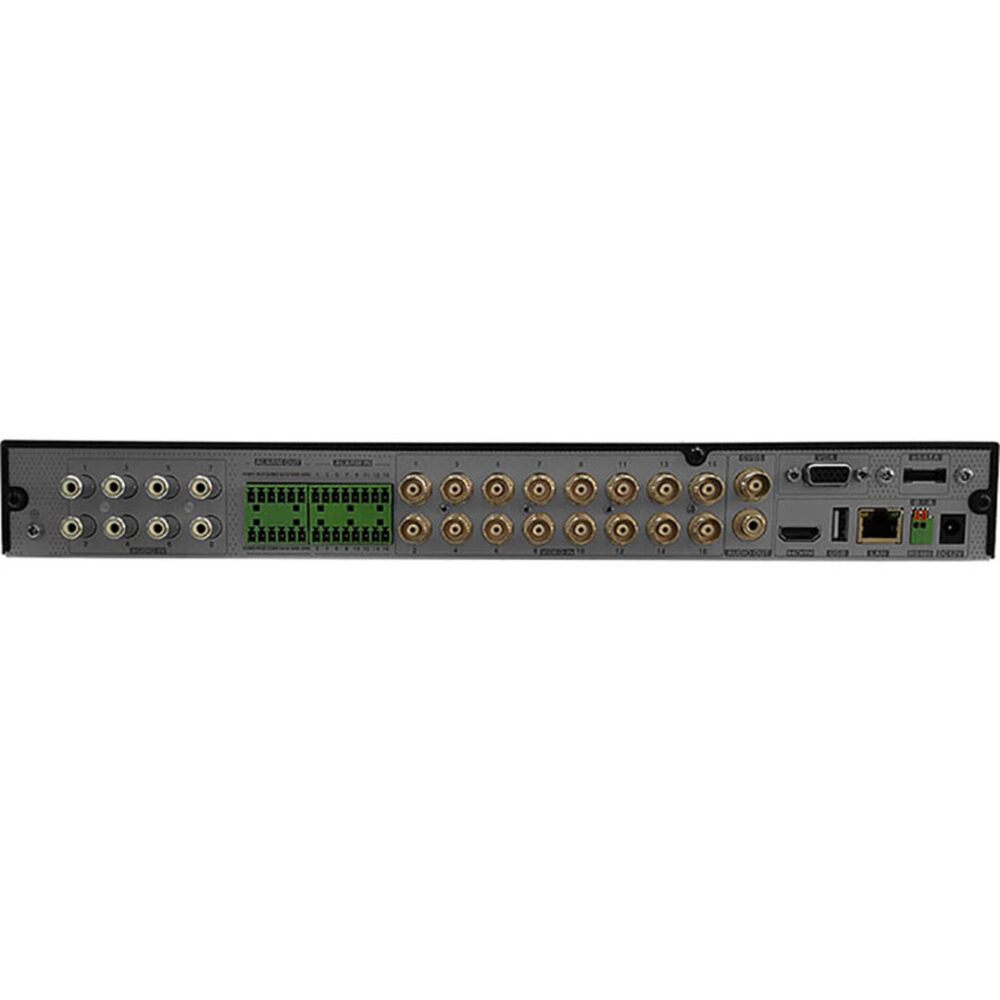

دستگاه ضبط DVR شیلد Shield SL-2716TE-HC

System

Compression

Standard H.265 High Profile

CPU

Cortex A9

OS

Embedded Linux

Video

Input

BNC × 16

Resolution

TVI / AHD: 5MP / 4MP / 1080P / 720P / WD1 CVI: 4MP / 1080P / 720P / WD1

IP Input

8 CH ( Up to 16CH )

Output

HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768

VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768

BNC × 1 : CVBS ( used as the main or spot output )

Audio

Input

RCA × 8

Output

RCA × 1

Two-way audio

Take up channel one audio input

Record

Resolution

5MP Lite/4MP Lite/1080P/1080P Lite/720P/WD1

Frame Rate

5MP Lite@10fps,

4MP Lite/1080P@12fps(PAL) / 15fps (NTSC),

1080P Lite/720P/WD1@25fps (PAL) / 30fps (NTSC)

Bit Rate

32Kbps ~5Mbps

Mode

Manual, timer, motion

IP Input

Resolution

5MP / 4MP / 3MP / 1080P / 960P / 720P

Frame Rate

25fps ( PAL ) / 30fps ( NTSC )

Play back

Playback

16 CH

Search

Time slice / time / event / tag search

Smart Search

Highlight colors to display the camera record in a certain period of time, different colors refer to different record events

Function

Play, pause, FF, FB, digital zoom, etc.

Alarm

Mode

Manual, motion, exception

Input

16 CH

Output

4 CH

Triggering

Record, snap, preset, e-mail, etc.

Network

Interface

RJ45 1000Mbps × 1

Protocol

TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP

Bandwidth

72/96Mbps (access/transfer)

Mobile Device

OS

iOS, Andriod

Storage

HDD

SATA × 2, E-SATA × 1, up to 6TB per HDD

Backup

Local Backup

U disk, USB removable HDD

Network Backup

Yes

Port

RS485

RS485 × 1, connect to PTZ or keyboard

USB

USB 2.0 × 2

Remote Controller

Optional

Others

Power Supply

DC12V / 4A

Consumption

≤ 15W ( without HDD )

Dimensions ( mm )

380 × 268 × 52 ( W × D × H )

Work Environment

-10 ～ 50 ℃，10% ～ 90% humidity
