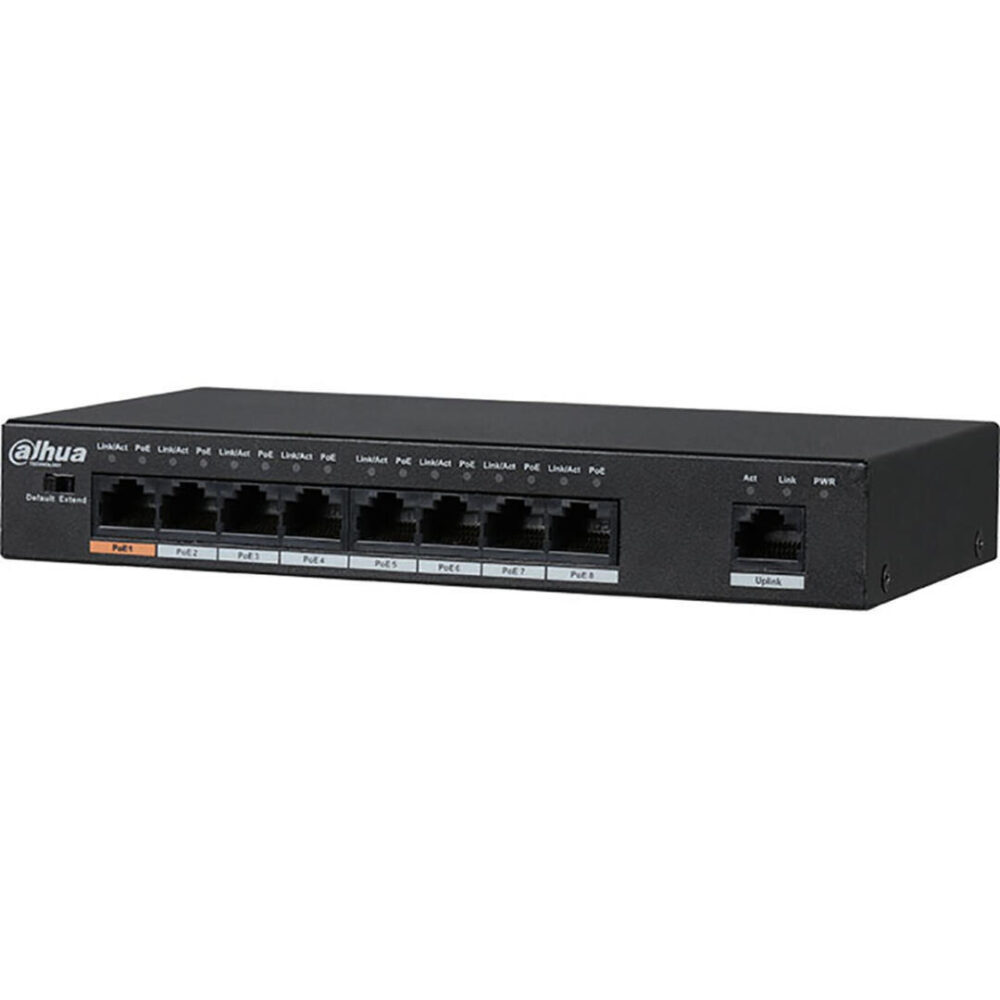

سوئیچ داهوا Dahua DH-PFS3009-8ET-96

Technical Specification

Model

DH-PFS3009-8ET-96

Ethernet Port

1*10/100 Base-T

8*10/100 Base-T (PoE power supply)

PoE Power Consumption

Port1≤60W, Port2-8≤30W, Total≤96W

PoE Protocol

IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE

Switching Capacity

1.8Gbps

Packet Forwarding Rate

1.34Mpps

Packet Buffer Memory

768K

MAC Table Size

2K

Flow Control

Enable by default

Application Humidity

10%~90%

Power

DC48~57V power adapter

Lightning Protection

Common Mode 2KV

Differential Mode 0.5KV

Working Temperature

-10°C~+55°C

Weight

0.48kg

Dimension(W×D×H)

190mm×100mm×30mm
