PoE Extender اچ ار یو ای HR-PE08-SV_HR-PE08-IPC

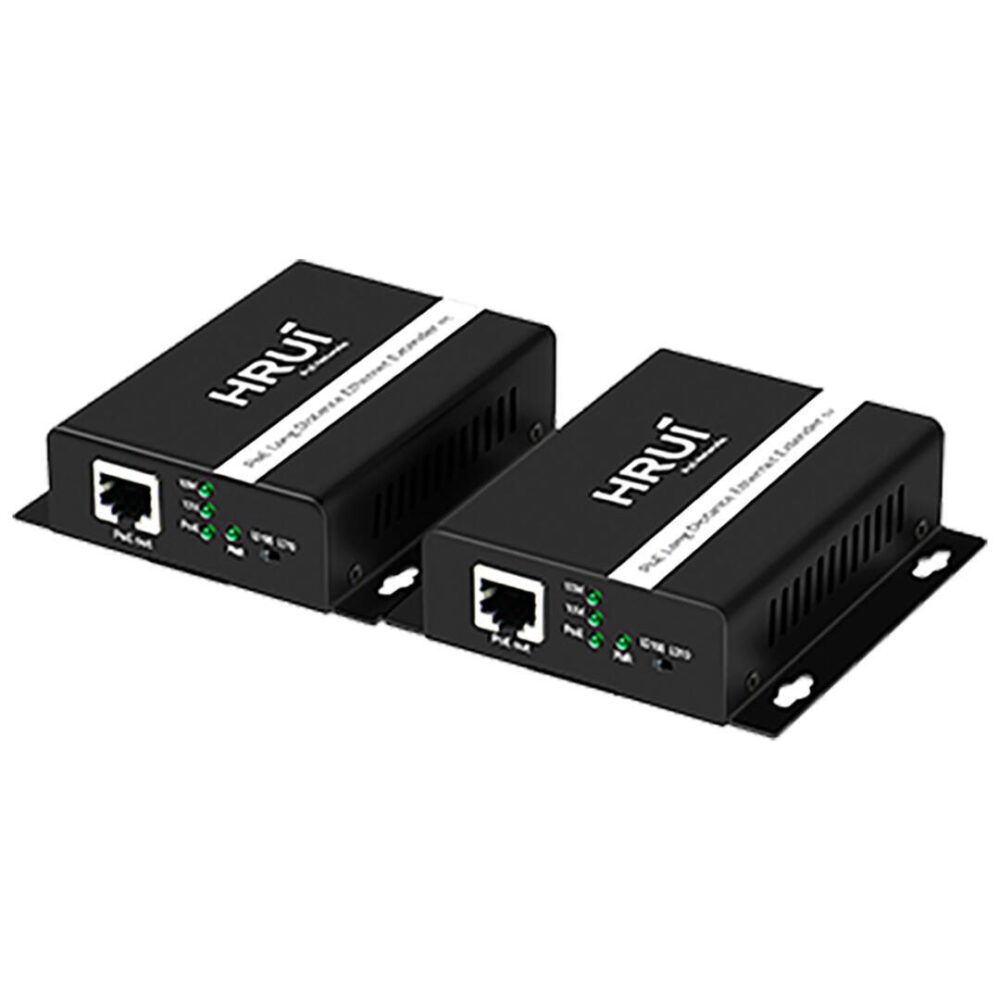

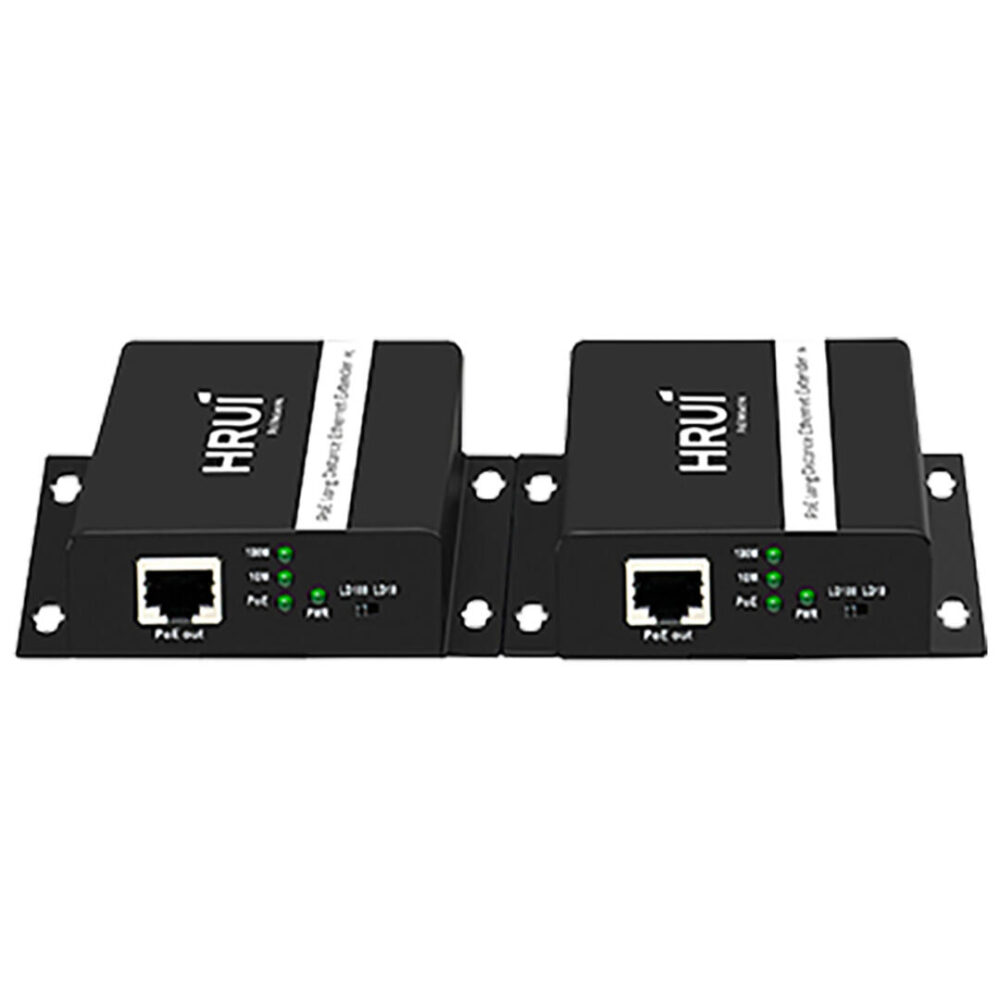

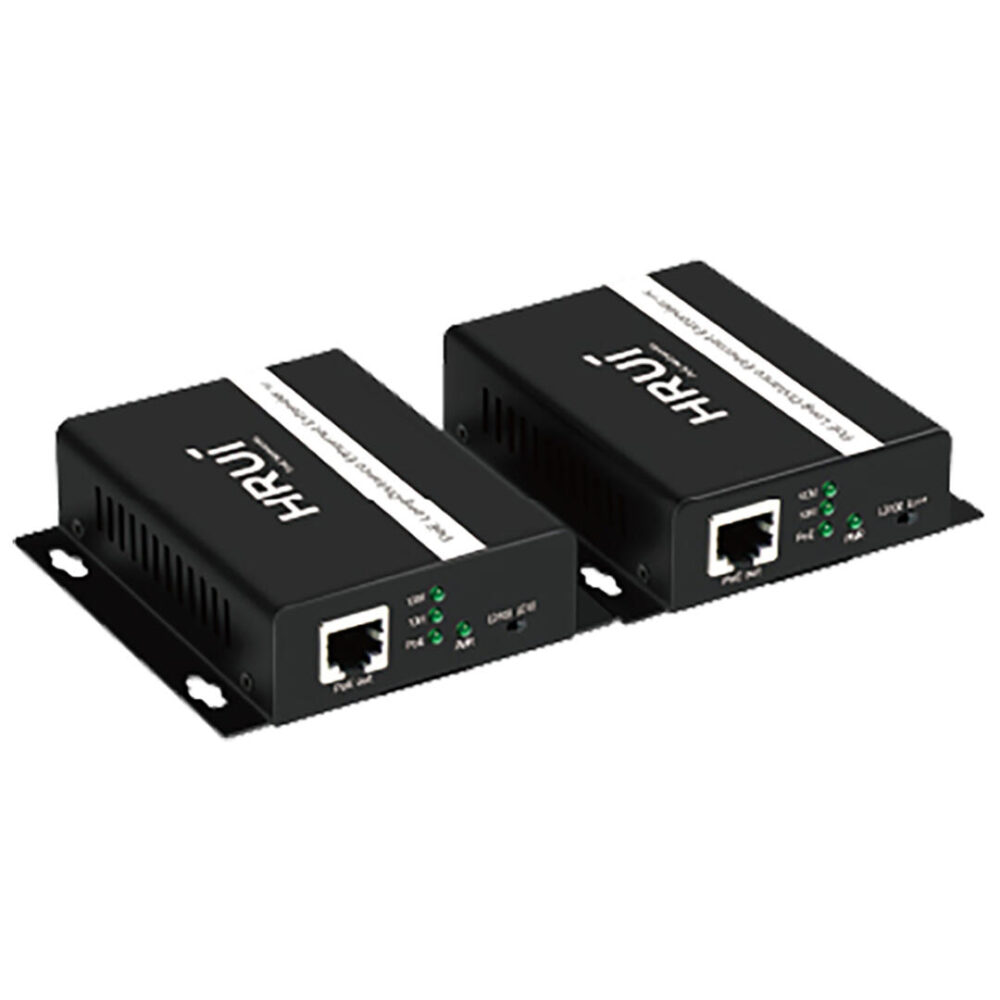

HRUI HR-PE08-SV_HR-PE08-IPC 800m POE Extender
شرح امکانات:
- اکستندر PoE شبکه
- یک پورت PoE اترنت 10/100Mbps
- پشتیبانی از استانداردهای IEEE802.3at (30W) and IEEE802.3af (15.4W)
- افزایش متراژ کابل کشی شبکه تا مسافت 800 الی 1000 متر
- 24 ماه وارانتی بی قید و شرط (12 ماه گارانتی تعویض + 12 ماه گارانتی تعمیر)
General Parameters |
|||
Product Name |
800Meters PoE Long-distance Ethernet PoE Extender |
PoE Parameters |
PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w) PoE compatibility: IEEE 802.3af/at adaptive Power Pin : 1/2(+) ; 3/6 (-)- |
Model |
HRUI-PE08-SV HRUI-PE08-IPC |
||
Port Definition |
1x10/100Mbps PD Ethernet Port +1x10/100Mbps PoE Port |
||
Network Parameters |
|||
Network Protocols |
IEEE802.3 IEEE802.3u IEEE802.3x |
Network Media |
10BASE-T: Cat 3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) |
DIP Function |
1. LD100: The port rate is 100M adaptive, and the transmission distance can be up to 500 meters; 2. LD10: The port rate is forced to 10M, long-distance mode, the transmission distance can be up to 800 meters. |
||
LED indicator |
Definition |
State |
Description |
PWR (Red) |
Power Supply Indicator |
Lighting Un-Light |
Powered No Power |
PoE (Green) |
PoE |
Lighting Un-Light |
Powered No Power |
10M (Green) |
Link & Data |
Flashing Un-Light |
10M link & data transmission Link failure or 100M link |
100M (Green) |
Link & Data |
Flashing Un-Light |
100M link & data transmission Link failure or 10M link |
Enviromental Parameters |
|||
Working Environment |
Operating Temperature: -10℃ ~ 50℃; Storage Temperature: -40℃ ~ 70℃; Operating Humidity: 10%-90%, non-condensing Storage Humidity: 5%-90%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters) |
Industry Standard |
EMI: FCC Part 15, CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
Power Supply |
Input Voltage:DC 52-57 V |
Certification |
CE,FCC,RoHS |
Physical Parameters |
|||
Packing Information |
Big Carton Dimension(LxWxH):505x320x400mm Packing QTY:40 Pairs Packing G.W:13KG |
Structure Size |
Product Dimension (LxWxH):95x95x28mm Package Dimension (LxWxH):245x190x60mm Product N.W:0.2kg Product G.W:0.3kg |
Package Contents |
PoE Extend x 1 pair User Manual x 1 pcs Warranty Card x 1 pcs Power Adapter x 1pcs(optional) |
||
Order Information |
|||
HRUI-PE08-SV |
1x10/100Mbps PD Ethernet Port + 1x10/100Mbps PoE Port |
||
HRUI-PE08-IPC |
1x10/100Mbps PD Ethernet Port + 1x10/100Mbps PoE Port |
مشخصات PoE Extender اچ ار یو ای HR-PE08-SV_HR-PE08-IPC
